Feature

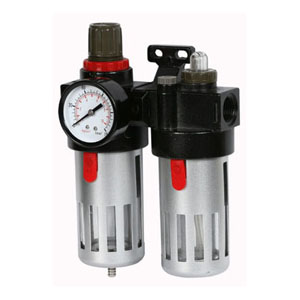

AB series filter and lubricator is equivalent AIRTAC series FRL..
Filter out the water molecule and dust, lubricate the oil and regulate the compressed air.
Specification
Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 |
Medium | Air | ||||
Port size(G) | 1/8 | 1/4 | 1/4 | 3/8 | 1/2 |
Port size for pressure gauge | G1/8 | G1/4 | |||
Drain capacity | 15cm3 | 60cm3 | |||
Oil capacity | 25cm3 | 90cm3 | |||
Max.burst pressure | 15kgf/cm2 | ||||
Max.operating pressure | 9.9kgf/cm2 | ||||
Regulating range | 0.5~8.5kgf/cm2 | ||||
Ambient and media temperature | 5~60 celcius | ||||
Filtration | 40um | ||||
Recommended oil | Turbin oil ISO VG32 | ||||
Body material | Aluminum Die-casting | ||||
Bowl material | Polycarbonate | ||||
Cup cover | - | steel | |||
Weight | 0.5kgs | 0.7kgs | |||
