Features
Nickle-Plated brass body and PBT body.
Stainless steel tube gripping claws, collars and release sleeves(collets) offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing.
Oval and round shape of release sleeve are available.
Three colors on the release sleeve, blue, black and gray.
Specifications
Fluid Admitted | Air, Vacuum, Water (no freezing) |
Working Pressure | 0—1.0MPa | 0—150psi |
Proof Pressure | 3.0Mpa | 435psi |
Negative Pressure | -100Kpa | -29.5 In Hg |
Working Temperature | 0—60°C | 32~140°F |
Applicable Tube | PU / PA / PE / PVC |
Metric Tube ØD | ||||||||||
4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm | 14mm | 15mm | 16mm |
Inch Tube ØD | ||||||
1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ |
Thread Standard and Type | |||||||||||
R, PT, BSPT — 55° Taper Pipe Thread | Metric Thread | ||||||||||
R1/8 | R1/4 | R3/8 | R1/2 | M5x0.8 | M6x1 | M8x1 | M10x1 | M12x1.25 | M14x1.5 | M16x1.5 | M20x1.5 |

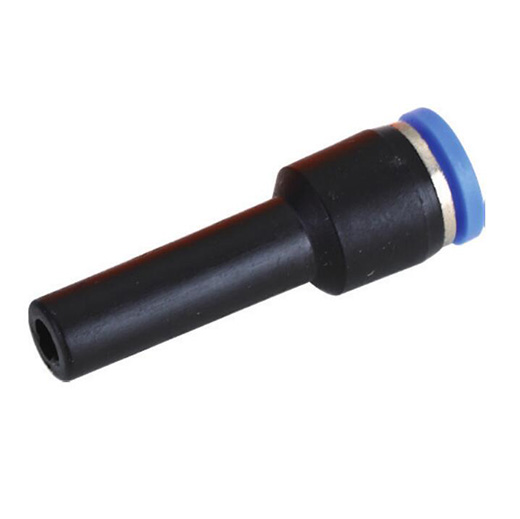

Tube(Metric) | Tube(inch) |
PGJ 6-4 | PGJ 1/4-5/32 |
PGJ 8-4 | PGJ 5/16-5/32 |
PGJ 8-6 | PGJ 5/16-1/4 |
PGJ 10-6 | PGJ 3/8-1/4 |
PGJ 10-8 | PGJ 3/8-5/16 |
PGJ 12-8 | PGJ 1/2-3/8 |
PGJ 12-10 |
