Piston-operated 2-way solenoid valves designed for high-temperature steam, hot oil and thermal fluid systems. The piston design (instead of diaphragm) tolerates temperatures up to 180°C and high differential pressures. Body in brass or stainless steel with BSP / NPT or flanged connections.
High temperature models
SP-F15S Stainless Flange Steam Valve
Stainless steel 2-way piston-operated flange solenoid valve for high-temperature steam / hot oil, 0.05-1.6 MPa, AC220V/DC24V, DN15-DN50.

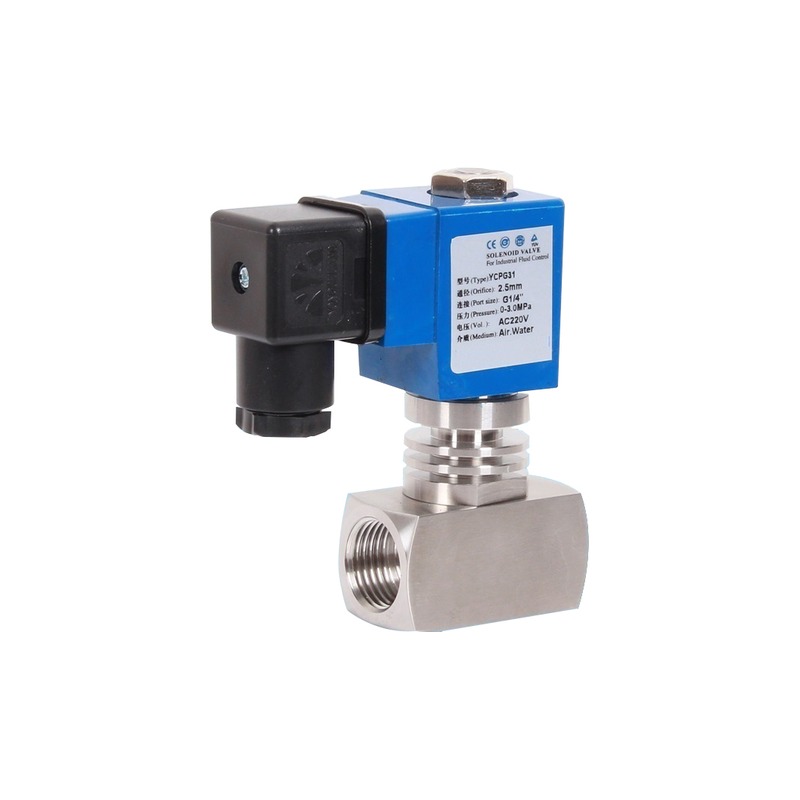

YCPG31 Stainless Threaded Steam Valve
Stainless steel 2-way piston-operated threaded solenoid valve, G 1/4 to G 1 inch, AC220V, 0-3.0 MPa.

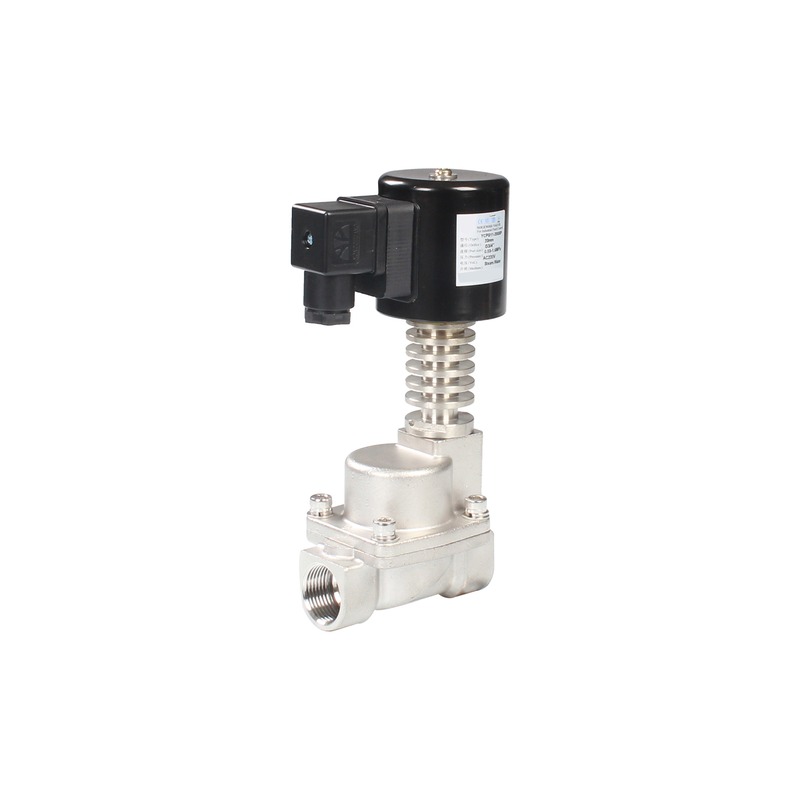

SLG-2 Stainless Steam Valve
Stainless steel 2-way piston-operated solenoid valve for steam, G 1/2 inch, 0-1.6 MPa, AC220V/DC24V.

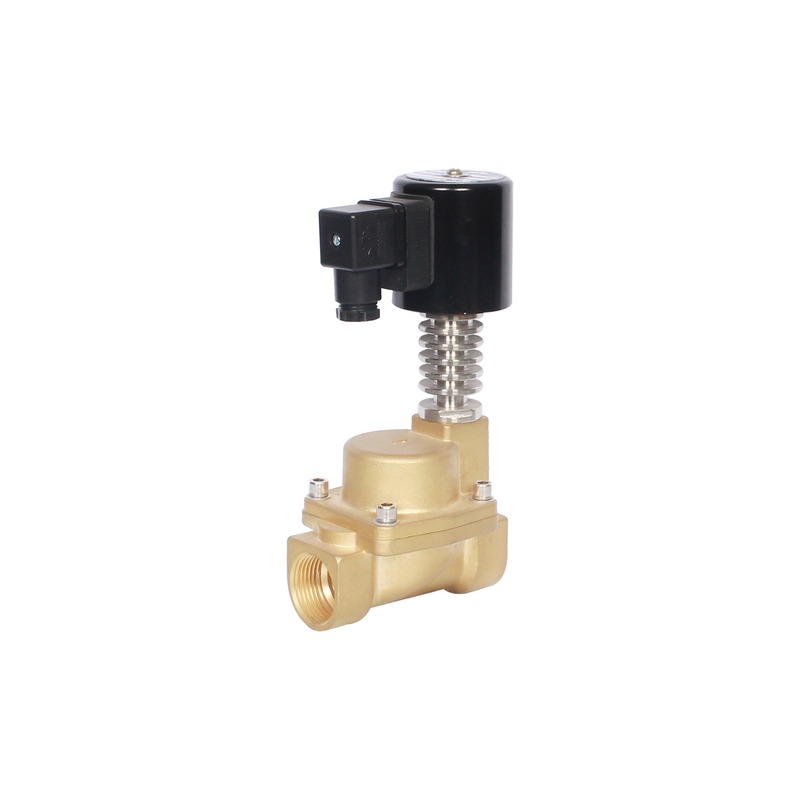

SLG-4 Brass Steam Valve
Brass 2-way piston-operated solenoid valve for steam / hot water, G 3/4 to G 1 inch, 0-1.6 MPa, AC220V.

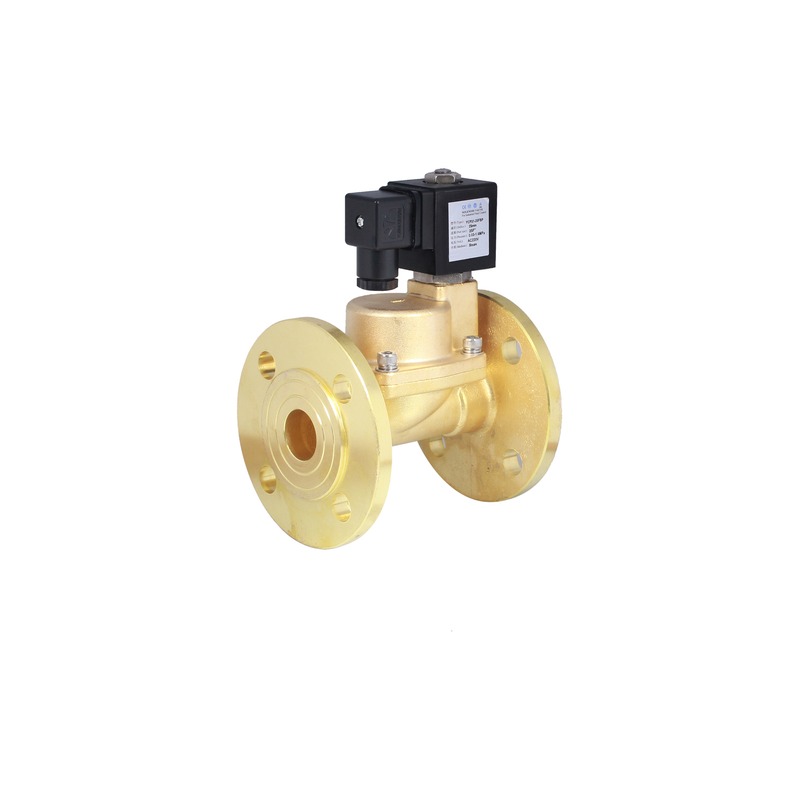

SP-F15 Brass Flange Steam Valve
Brass 2-way piston-operated flange solenoid valve for high-temperature steam / hot oil, DN15-DN50, AC220V, 0.05-1.6 MPa.
